Electrical
Electrical takeoffs in minutes, not days
Fixtures, conduit runs, home routes, branch circuits — extracted from the plan, sorted by linear feet and count. No more highlighting symbols by hand.
Explore electrical takeoff software →
Takeoff
Turn full 2D blueprint sets into bid-ready quantity takeoffs in minutes across mechanical, electrical, plumbing, and structural scope.
Working from the full bid set? See how our AI construction takeoff software reads drawings and specifications together and returns a bid-ready package for estimator review.
With Boon accurate estimates are just 3 steps away
Drag & drop blueprints into Boon.
Quantities and volumes are calculated instantly.
Get precise, bid-ready numbers you can trust.
Turn one estimator's five bids a month into fifteen. Boon does the measuring; your team does the strategy.
Conflicts between architectural, structural, and MEP plans surfaced at takeoff time — not after award.
Export to Procore, ProEst, and your bid sheet — with quantities tied back to the drawing for traceability.
Drop in every bid you receive; Boon levels them across scope, quantity, and price.
By trade
From electrical conduit to steel W-shapes — Boon Takeoff handles trade-specific scope, not generic geometry.

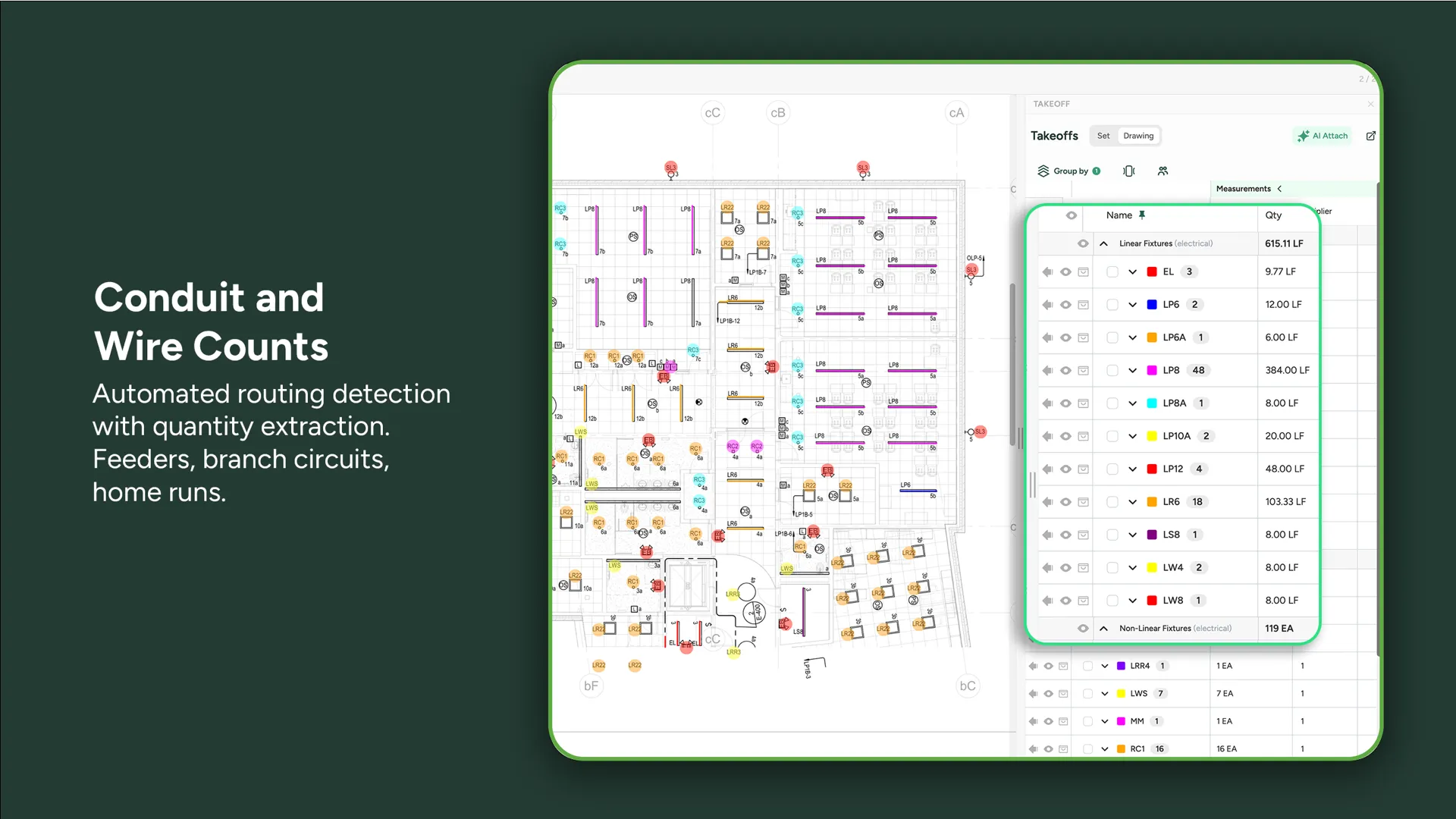

Electrical
Fixtures, conduit runs, home routes, branch circuits — extracted from the plan, sorted by linear feet and count. No more highlighting symbols by hand.
Explore electrical takeoff software →

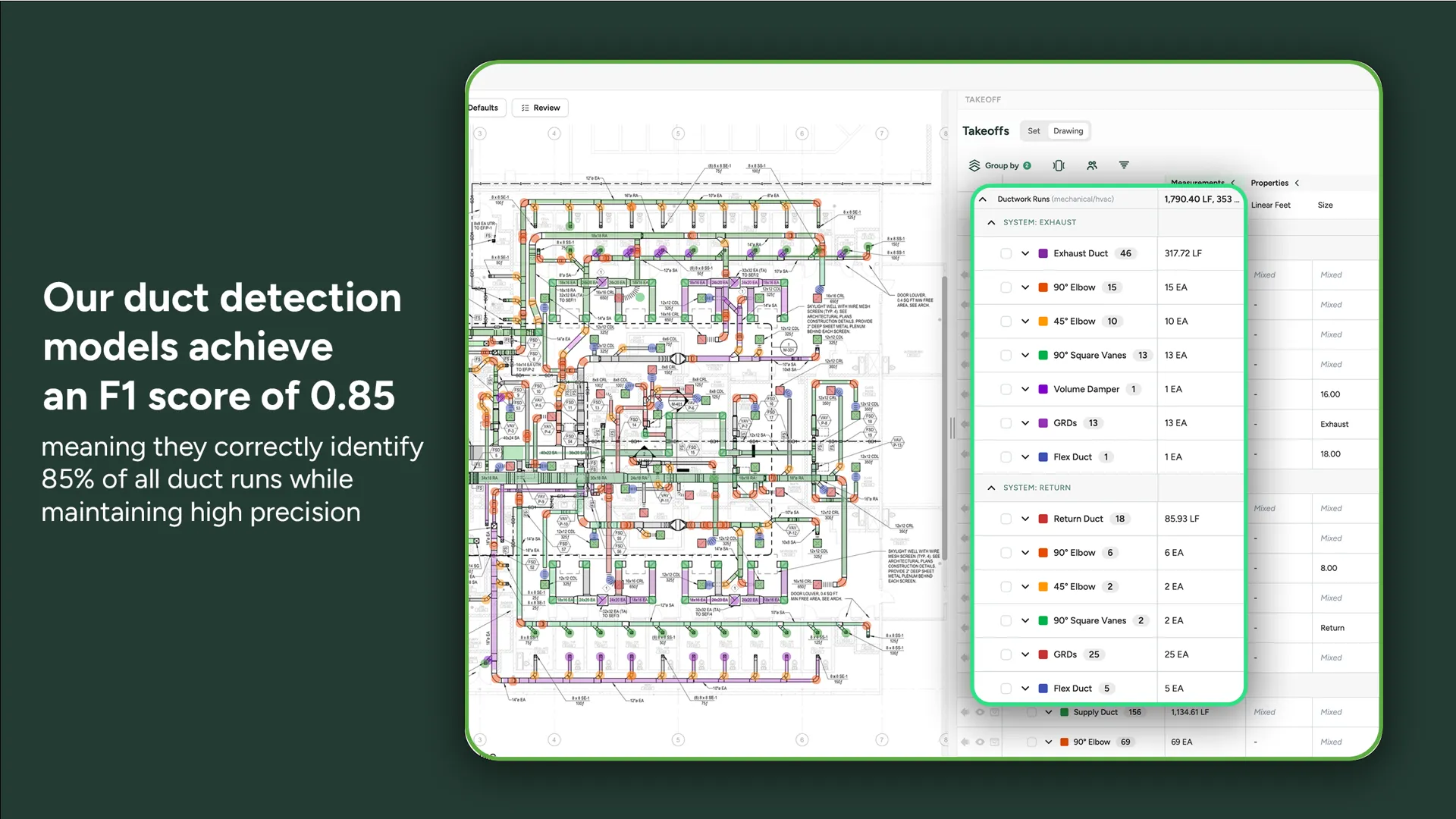

Mechanical (HVAC)
Supply, return, exhaust — color-coded and counted across every system. Validated at 0.85 F1 on real-world drawings.
Explore mechanical takeoff software →

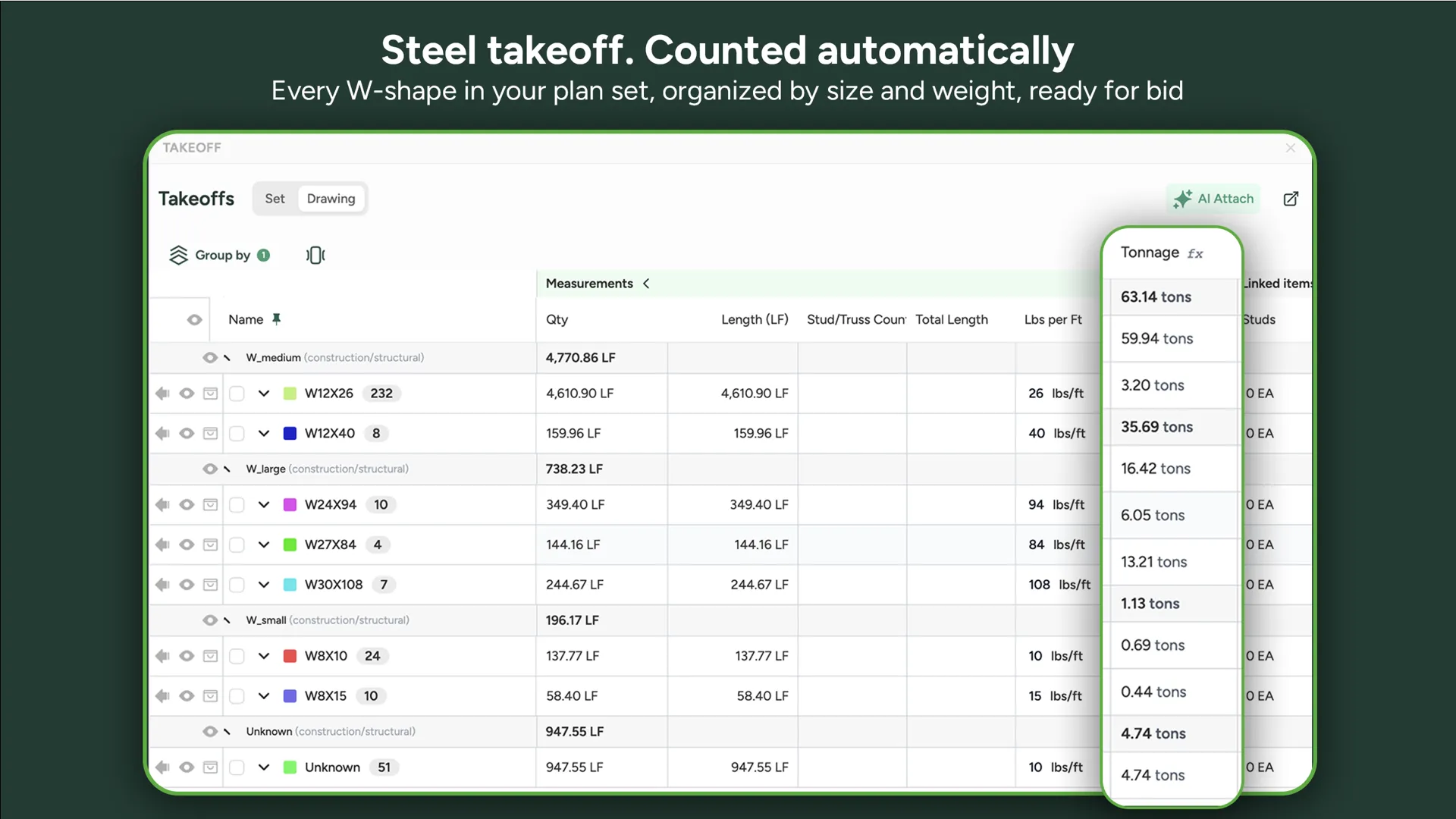

Steel
Structural steel grouped by size, with linear feet and tonnage calculated automatically. Ready to drop into a bid sheet.
Explore structural steel takeoff software →
Not another AI company. Purpose built by Construction and AI industry experts with over 150 years of combined industry experience.
See more
“Boon acts as a collaborative partner to help future-proof our working habits.”
Software capabilities
Traditional takeoff software requires manual point-and-click tracing sheet by sheet. Boon turns complete blueprint sets and specification books into quantified, bid-ready scopes in minutes.
Reads architectural, structural, and MEP sheets alongside the spec book. Understands revisions, callouts, and notes across every page instead of treating sheets in isolation.
Counts devices and measures linear footage automatically with task-verified accuracy across electrical fixtures, ductwork, piping, and structural steel framing.
Flags drawing-to-specification mismatches, missing equipment schedules, and unclear scope before bid day, reducing costly addenda surprises and rework.
Extract mechanical ductwork, electrical devices, and plumbing fixtures simultaneously from 2D drawings, cross-referenced with equipment schedules.
Push quantities straight into Excel, CSV, ProEst, Procore, PlanSwift, BuilderTrend, fastEST, or Bluebeam. Formatted with item codes, cost codes, and line-item descriptions ready for pricing.
Explore dedicated trade workflows: Electrical takeoff software, Mechanical & HVAC ductwork, Plumbing & piping, Structural steel, and Concrete estimating.
FAQ
How Boon works on real drawing sets, accuracy evidence, supported trades, and pricing.
Boon publishes task-level F1 evidence: structural steel beam detection F1 0.93-0.95, HVAC fitting detection F1 0.84, straight mechanical ductwork detection F1 0.85, flex duct detection F1 0.72, architectural door detection F1 0.88, and electrical device detection F1 0.64. Review the benchmark that matches your own plan set at /accuracy.
Boon supports electrical (fixtures, conduit, home runs, branch circuits), mechanical / HVAC (ductwork, fittings, equipment, piping), plumbing (fixture schedule matching, water, sanitary, and storm piping), structural steel (W-shapes, HSS, channels, plates, angles), and concrete (slabs, column footings, wall footings, rebar).
Yes. Boon reads full plan-and-spec sets across every sheet, including scanned PDFs, and reasons across the whole document set rather than one page at a time.
Boon is purpose-built for multi-trade 2D MEP takeoff. It extracts mechanical ductwork and fittings, electrical fixtures and conduit runs, and plumbing fixtures and piping directly from 2D PDF blueprints, cross-referencing equipment schedules on every sheet.
Boon provides AI-powered quantity takeoff that reads entire plan sets, extracts linear measurements and symbol counts, and lets estimators validate results with visual overlays. Contractors report taking off plans up to 90% faster than manual measuring.
Upload your multi-page PDF blueprint set. Boon calibrates drawing scale, identifies legends and schedules, extracts symbol counts and linear measurements, and presents quantities on screen for your review before exporting to your estimate.
Boon runs automated extractions across full drawing sets in minutes. On a real hospital set, an estimator validated an AI takeoff in 22 minutes instead of 6 to 8 hours of manual clicking, freeing up roughly 2 to 3 times more bid capacity.
Boon exports structured quantity data directly to Microsoft Excel (XLSX), CSV, ProEst, Procore, PlanSwift, BuilderTrend, fastEST, and TradeService/SupplierLink XML, plus Bluebeam markup PDFs.
