From 23 Minutes to 2: How AI Wall Takeoff Actually Works
How Boon's AI is transforming wall takeoffs from a 23-minute grind into a 2-minute workflow — and what it means for your bid capacity.
The Problem Every Estimator Knows Too Well
If you've ever sat in front of a set of architectural drawings with a digital scale, clicking wall by wall, segment by segment, you know the drill.
Wall takeoffs are one of the most tedious parts of preconstruction. For a single sheet, a skilled estimator might spend 20-25 minutes:
- Tracing every wall segment
- Classifying wall types (interior, exterior, fire-rated, demising)
- Measuring linear footage
- Calculating square footage for each type
- Cross-referencing the wall schedule in the specs
Now multiply that by 50 sheets per project. By 5 projects per month. You're looking at 87+ hours per month on walls alone.
That's more than two full work weeks. Every month. Just on walls.
And this is happening while the construction industry faces an estimator shortage that isn't getting better. The average estimator is 55+ years old, and there aren't enough coming up to replace them.
The math doesn't work.
What 11.5x Faster Looks Like

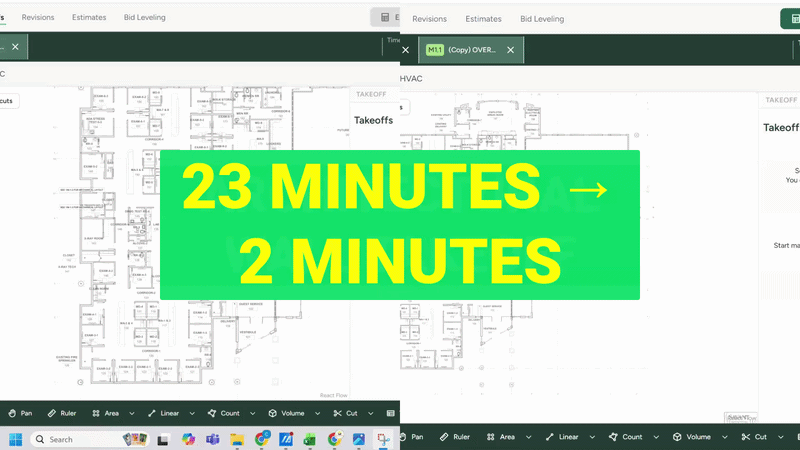

We recorded a real wall takeoff — start to finish, no cuts, no tricks — to show exactly what happens when AI handles the measuring.
Here's what you're seeing in the video:
Step 1: Upload the Drawing
The estimator uploads an architectural floor plan — a standard PDF, the same kind sitting in every GC's plan room right now.
Step 2: AI Detection
Boon's AI reads the drawing and identifies every wall segment on the sheet. It's not using simple line detection — it understands the architectural conventions: wall thickness, hatching patterns, door/window openings, and how walls connect at corners.
Step 3: Wall Classification
Each detected wall is classified by type: interior partition, exterior wall, fire-rated assembly, demising wall, etc. The AI references common architectural standards and the drawing's own wall schedule.
Step 4: Measurement
Linear footage (LF) and square footage (SF) are calculated automatically for each wall type, accounting for:
- Wall height (from the drawing or specs)
- Openings (doors, windows, pass-throughs)
- Wall intersections and corners
Step 5: Estimator Review
This is the critical part — and the part that makes Boon different from "fully automated" tools that over-promise.
The estimator reviews the AI's work. They can:
- Adjust wall types where the AI was uncertain
- Add or remove segments the AI missed or hallucinated
- Verify quantities against their experience
The AI gets you 85-90% of the way there. The estimator's expertise handles the rest.
The result: same accuracy as a manual takeoff. 11.5x faster.
The Math That Matters
Let's make this concrete for a mid-size GC or sub:
Time per sheet (walls)
23 min
2 min
Sheets per project
50
50
Projects per month
5
5
Monthly wall takeoff hours
96 hrs
8.3 hrs
Hours saved per month
—
87.7 hrs
That's 87 hours your estimators get back. Every month.
What could your team do with 87 extra hours?
- Bid on 2-3 more projects without adding headcount
- Improve bid quality by spending more time on pricing strategy instead of measuring
- Reduce overtime and burnout (estimators working 60-hour weeks during bid season is the norm, not the exception)
- Win more work by turning around bids faster than competitors
Why This Isn't "Replacing" Estimators
Let's address the elephant in the room.
Every time we show this demo, someone asks: "So you're replacing estimators with AI?"
No. And here's why that framing misses the point entirely.
A good estimator's value isn't in their ability to measure walls. It's in their judgment:
- Knowing that the spec calls for one thing but the GC will actually accept another
- Catching scope gaps that would turn into change orders
- Understanding which numbers to sharpen to win the bid and which to pad for risk
- Building relationships with subs and suppliers to get competitive pricing
Measuring walls is the thing that prevents them from doing the work that actually matters.
Boon removes the bottleneck so estimators can do more of what makes them valuable.
The Bigger Picture
Wall takeoffs are just one trade. Boon handles:
- Electrical takeoffs (conduit, devices, fixtures)
- Mechanical/HVAC (ductwork, equipment, piping)
- Plumbing (fixtures, piping runs)
- Structural (concrete, rebar, steel)
- Civil (earthwork, utilities)
- Architectural (walls, doors, windows, finishes)
The same 11.5x improvement applies across trades. The compounding effect on a preconstruction team's capacity is massive.
See It On Your Plans
The video shows our plans. But the real test is yours.
Upload your own drawings and see what Boon can do in 2 minutes.
No commitment. No 6-month implementation. Upload plans, run a takeoff, see the results.
If your team is spending 20+ hours a week on takeoffs, you owe it to them to at least see what's possible.
Boon is an AI-powered preconstruction platform trusted by leading contractors. Built by construction and AI experts with 150+ years of combined industry experience.
