Structural Steel Takeoff: 50 Minutes vs. 5 Minutes — What Changed
How AI-assisted takeoff is giving steel estimators their time back

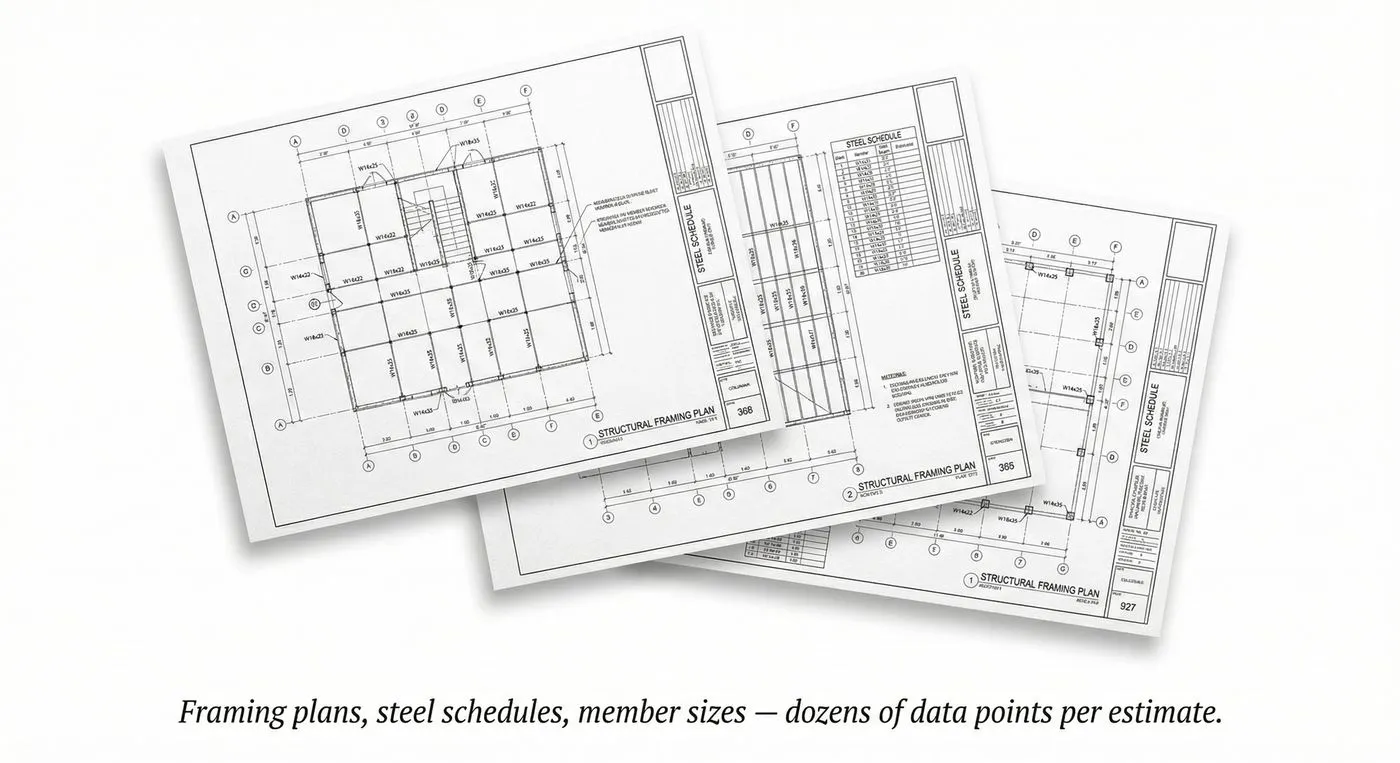

Structural steel takeoff is one of the most cross-reference-heavy scopes in preconstruction. Framing plans, steel schedules, member sizes, weights per linear foot — an estimator touches dozens of data points before a single tonnage number lands in the estimate.
We recorded a real estimator performing a structural steel takeoff from scratch. It took 50 minutes.
Then we ran the same drawings through Boon AI. With human review included, it took 5 minutes.
What the Manual Process Looks Like
Every steel estimator knows the drill:
- Open the framing plans
- Identify beam marks, column marks, joist designations
- Cross-reference the structural steel schedule
- Look up each member size and unit weight
- Measure spans from the drawings
- Calculate tonnage per section
- Repeat across every sheet
It is not that any single step is hard. It is that the volume of cross-referencing compounds fast — especially across 10+ framing plan sheets with 3 revisions in play.

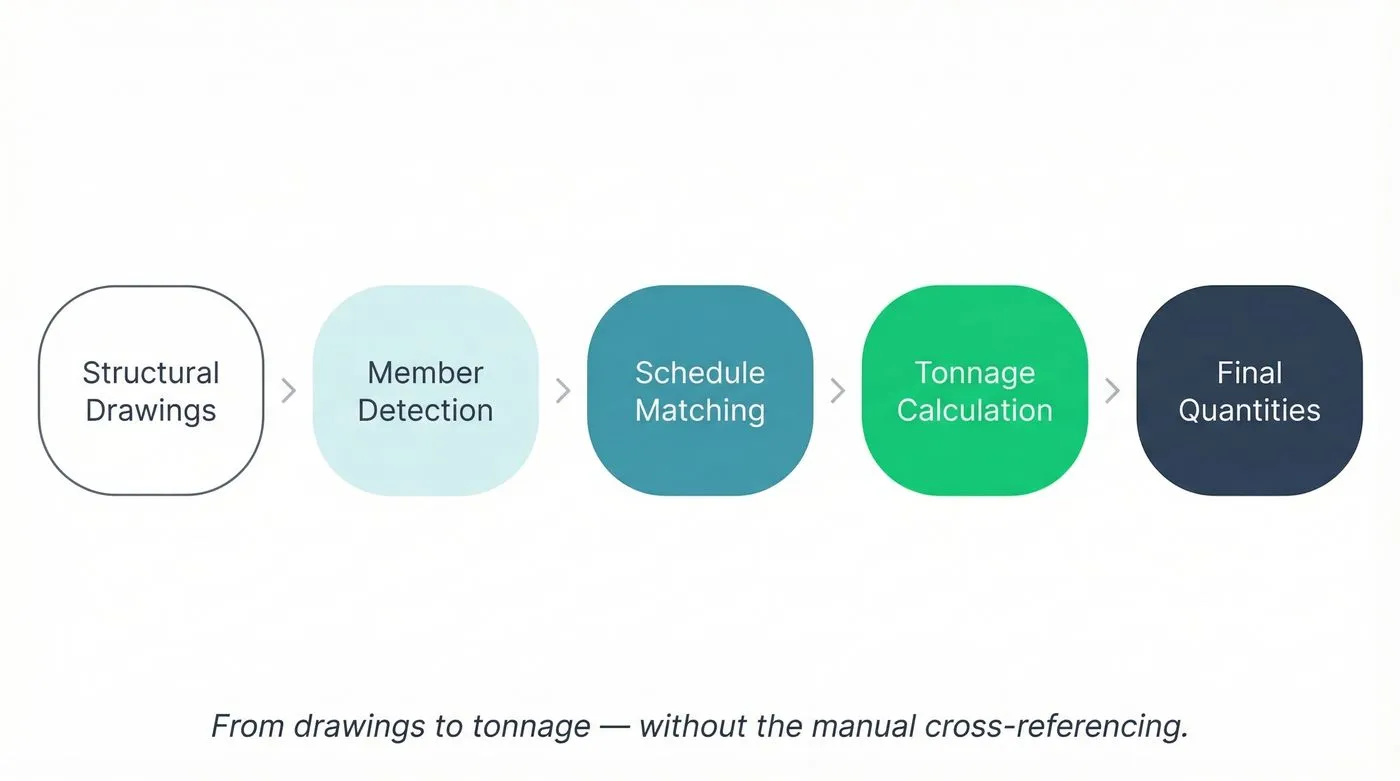

What the AI-Assisted Process Looks Like
With Boon AI:
- Upload the structural drawing set
- AI identifies beams, columns, and joists automatically
- Steel schedule data is extracted and matched to detected members
- Quantities and tonnage are calculated
- The estimator reviews, adjusts, and approves
The estimator expertise is not replaced — it is redirected. Instead of spending 50 minutes on data extraction, they spend 5 minutes on verification and judgment, which is where their experience actually matters.

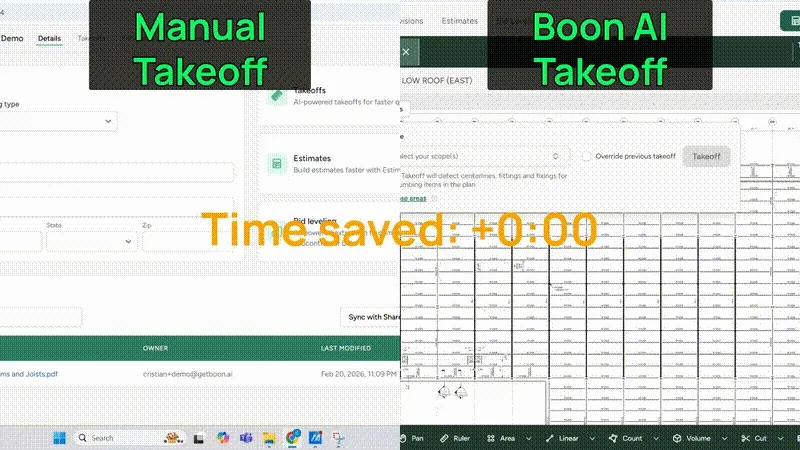

🎥 Watch the Full Comparison
▶️ Watch the full side-by-side comparison video
Why This Matters at Scale
A single steel takeoff saving 45 minutes is nice. But estimators do not do one takeoff. They do dozens.

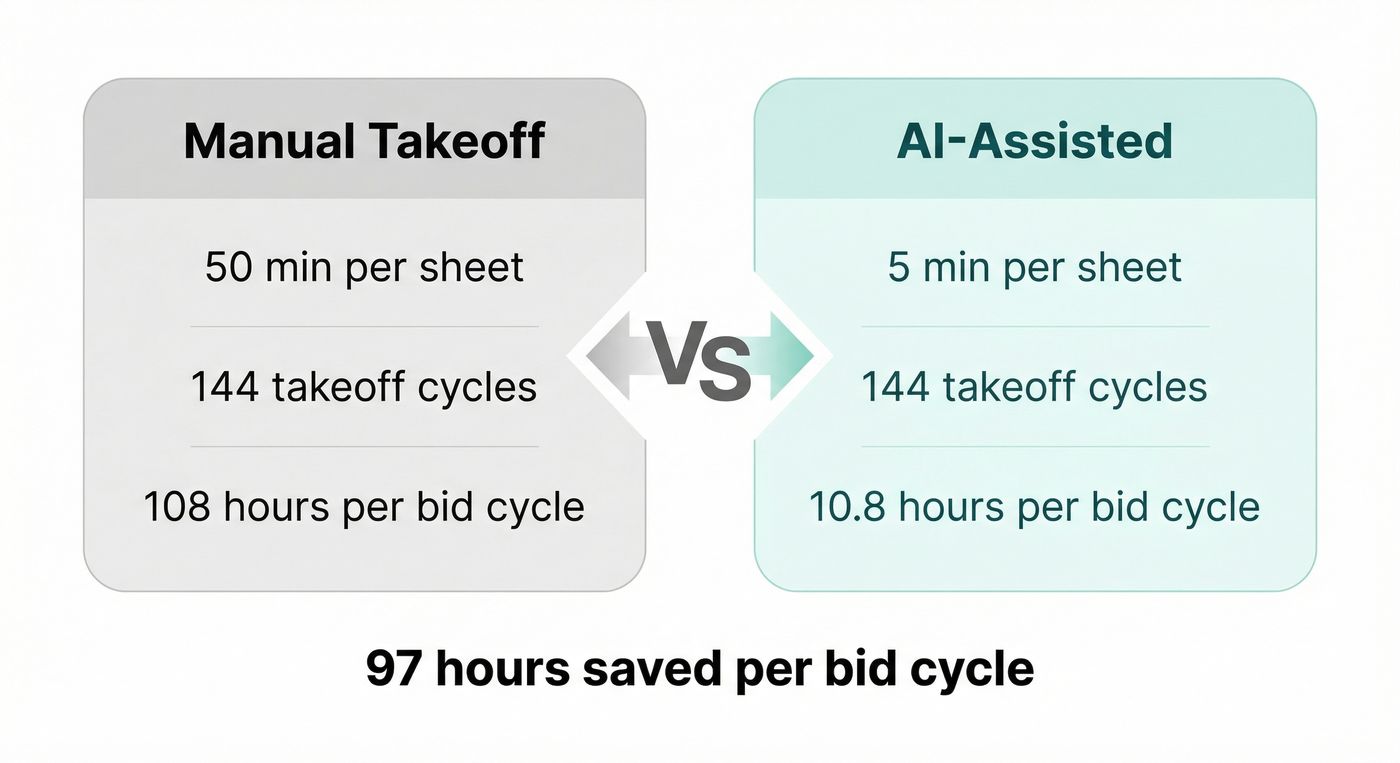

- 12 framing plans × 3 revisions × 4 active bids = 144 takeoff cycles
- At 45 minutes saved each, that is 108 hours back per bid cycle
- That is not efficiency. That is the difference between bidding 4 projects and bidding 8.
The Bottom Line
Steel estimators are some of the most detail-oriented professionals in construction. The problem was never their skill — it was the sheer volume of repetitive data extraction stealing time from higher-value work.
50 minutes → 5 minutes. Same drawings. Same accuracy. More bids.
Let estimators estimate. Let AI quantify.
